New highlights
- The garbage bin is separated from the filter bin, and the large particles are separated from the dust. The filter adopts gravity dust reduction, filter interception, and industrial bag filtration to make the filtration system more stable and sustainable, better for road cleaning.
- Add water tank, water gun, you can wash vehicles, wash the garbage bin, easy to clean after the hygroscopic material: increase brush brush spray can inhibit brush cleaning dust;
- The volume of the water tank is 600L and the volume of the tank is 8m3.
Product Paramenter
|
Product Name
|

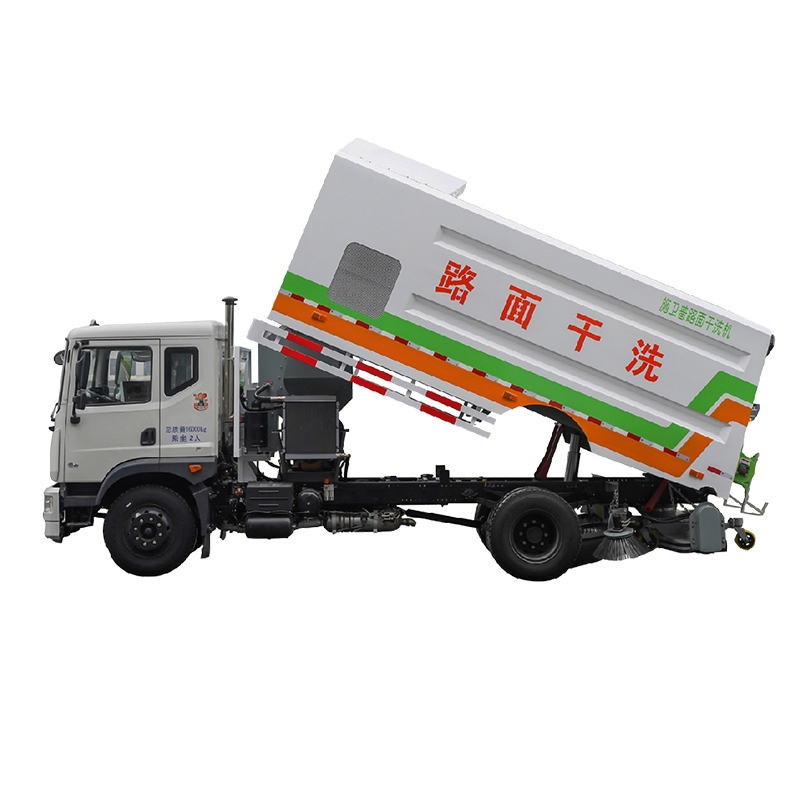

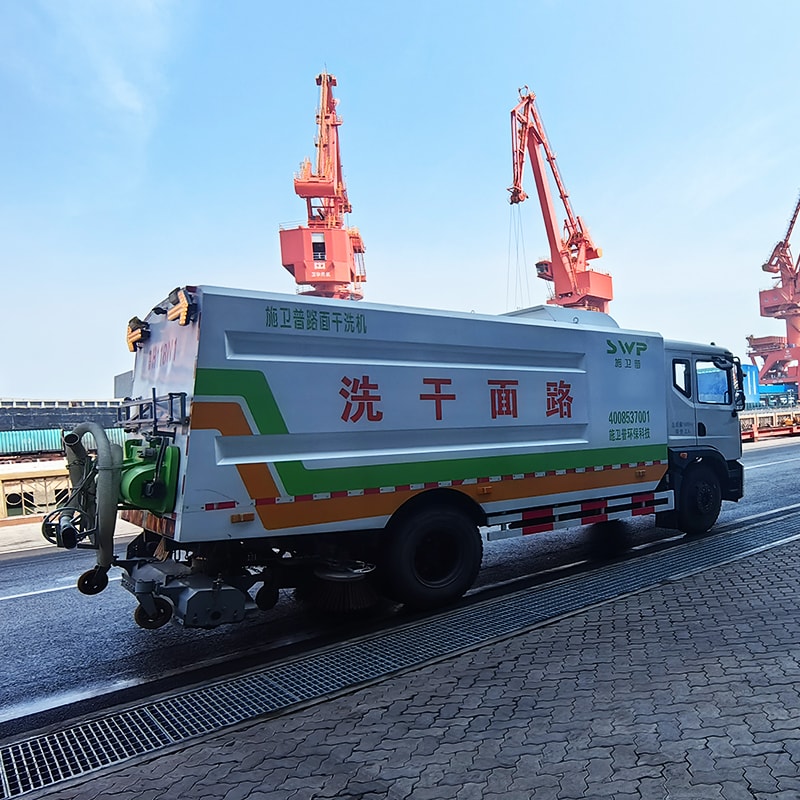

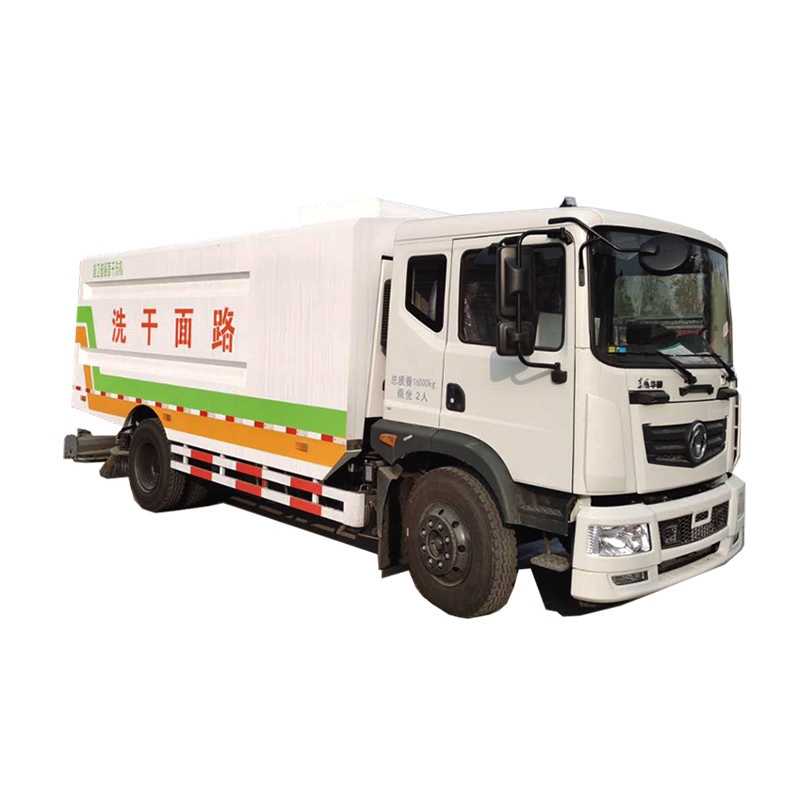

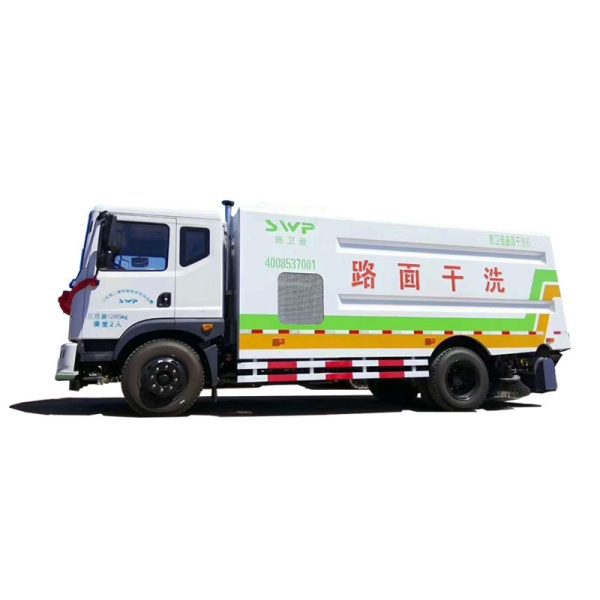

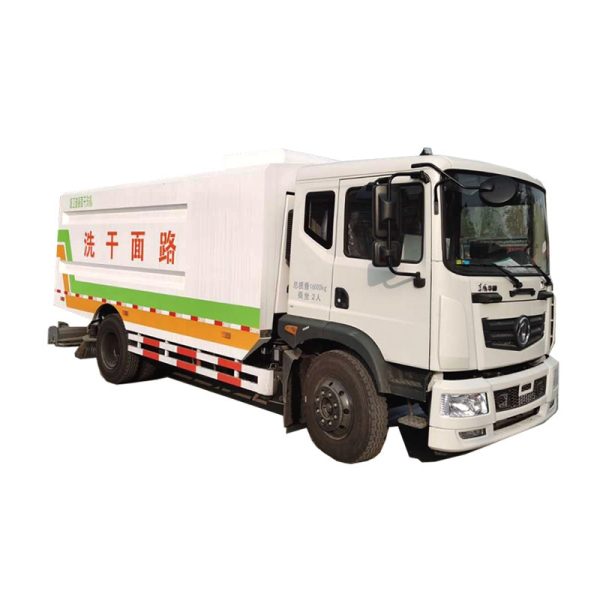

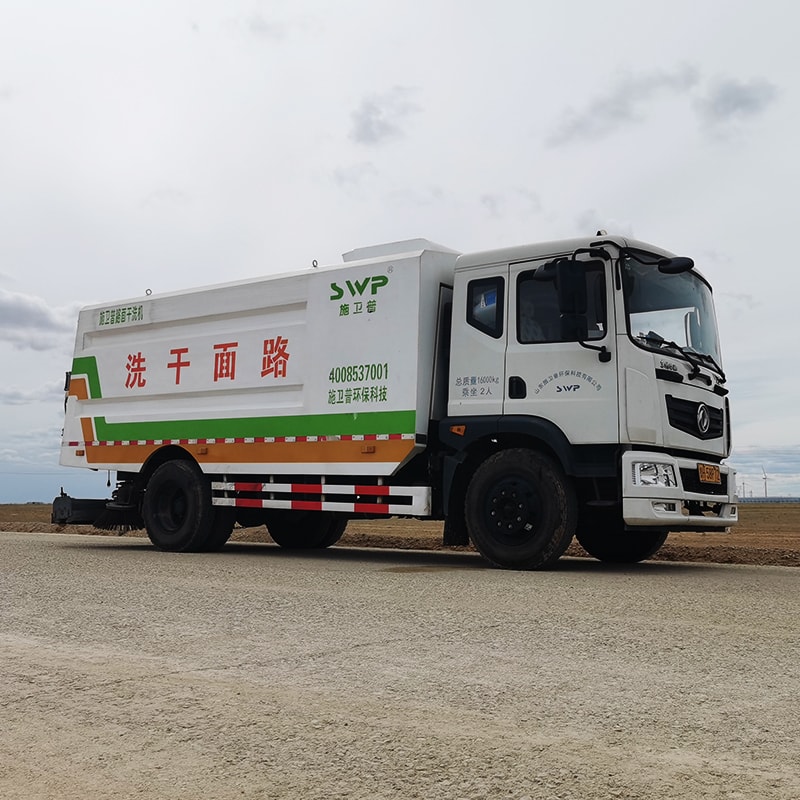

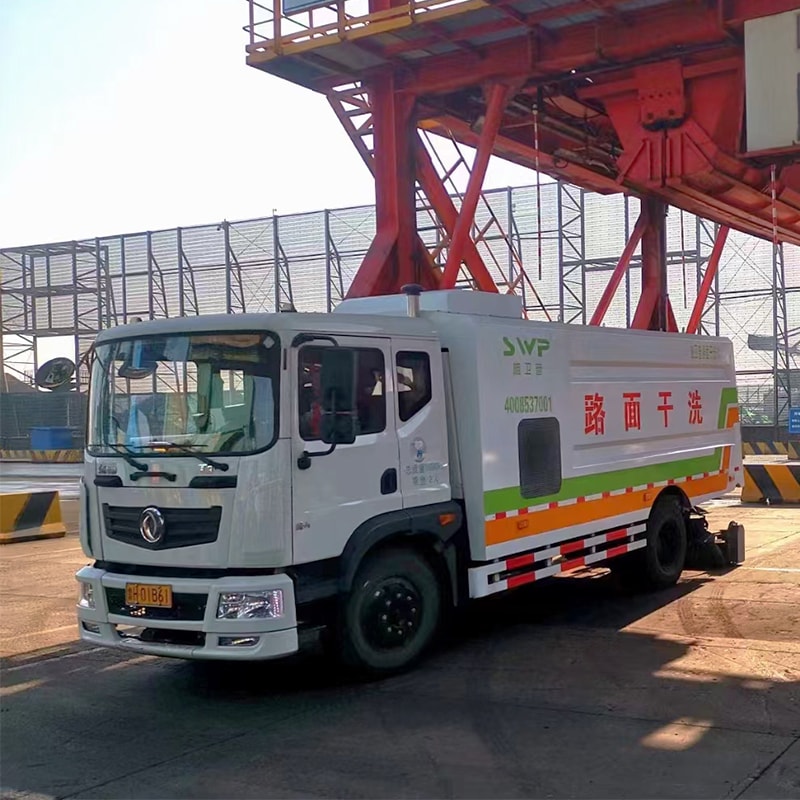

EQ5160TXCL6D Dust Extraction Truck
|
|
Chassis vehicle brand
|
Dongfeng
|
|
Chassis Model
|
EQ1160GL6DJ
|
|
Fuel type
|
diesel
|
|
Front wheelbase (mm)
|
1820
|
|
Chassis engine model
|
YCY30165-60
|
|
Displacement and power (ml/kw)
|
2800/121/165
|
|
Number of tires
|
6
|
|
Tire specification
|
9.00R20
|
|
Rear wheelbase(mm)
|
1800
|
|
Wheelbase(mm)
|
4200
|
|
Total mass(kg)
|
16000
|
|
Overall mass(kg)
|
9700
|
|
Number of steel plate spring leaf
|
9/11+8
|
|
Emission standard
|
GB 17691-2018 National Six
|
|
Outline Dimension(mm)
|
8050*2450*3100
|
|
Rated mass(kg)
|
6170
|
