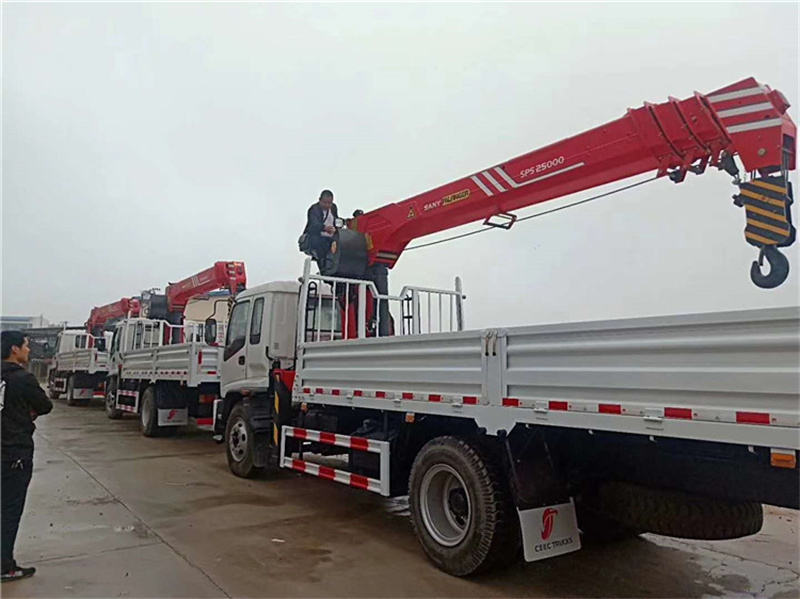

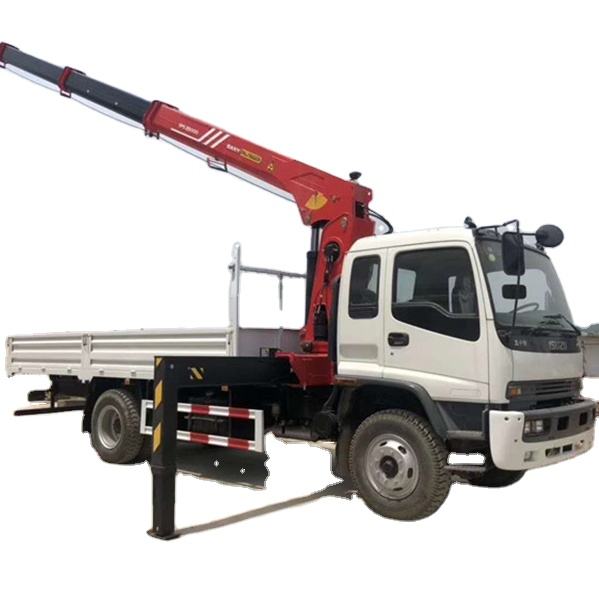

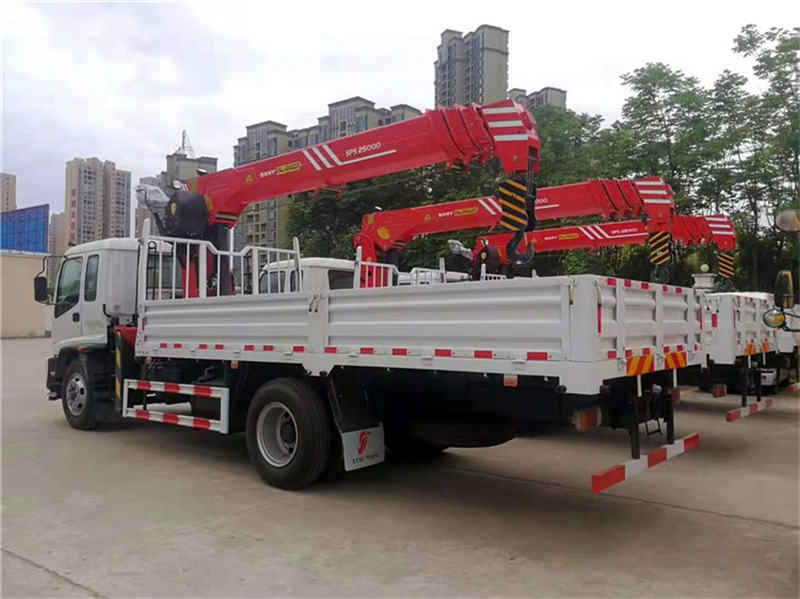

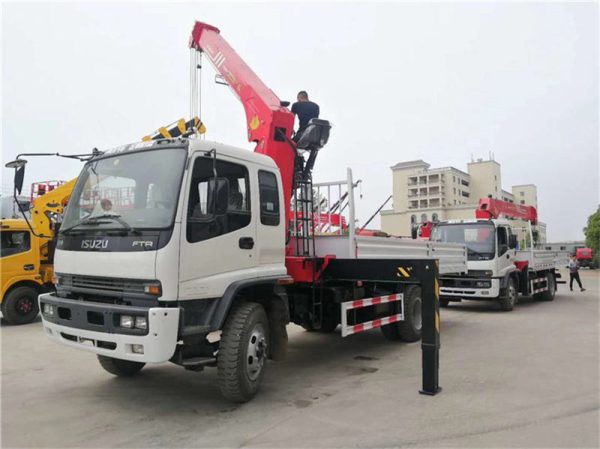

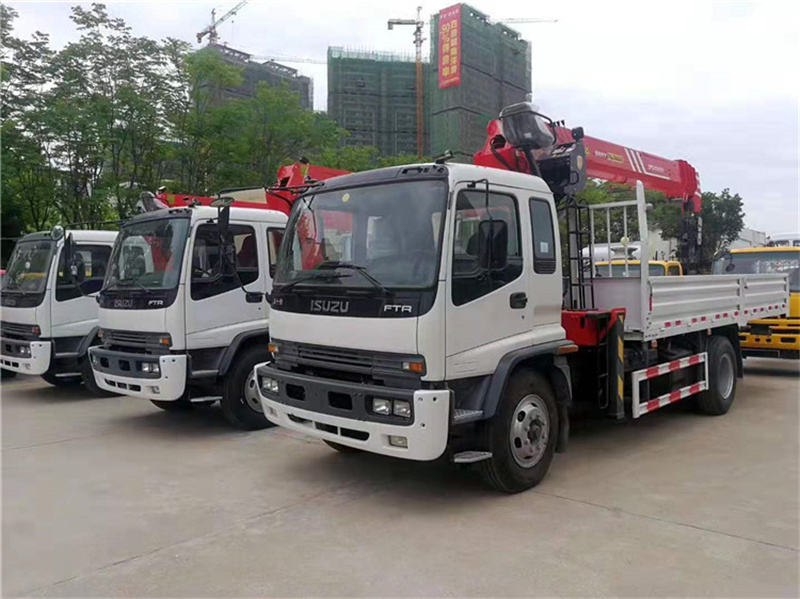

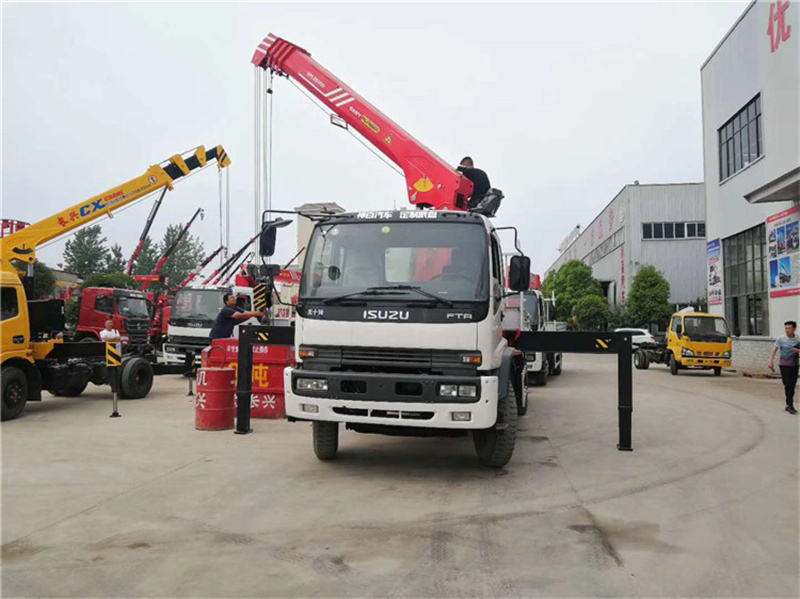

Used Isuzu 10Ton Trucks Mounted Crane

Prepare to elevate your lifting and transport capabilities to new heights with the truck mounted crane, a pinnacle of strength and precision in the realm of commercial vehicles. Renowned for its robust design and exceptional performance, the  truck mounted crane stands as a symbol of reliability and efficiency, empowering businesses to tackle their lifting challenges with ease and confidence.

Category:
Get a Quote

Product Paramenters

Item name Truck mounted crane
Dimension 9000x2500x3850 mm
Bucket dimension 5700x2290x600 mm
Total weight 18000 kg
Curb weight 10550 kg
Loading capacity 7250 kg
Wheelbase 5800 mm
Chassis brand ISUZU
Tire speficication 295/80R22.5 16PR
Number of tires 6
Fuel type Diesel
Engine model 4HK1-TC50
Engine displacement 5193 cc
Engine power 151 kw/ 205 hp
Engine rate speed 2600 rpm
Engine max torque / speed 650 N.m at 1600 rpm
Crane brand XCMG
Crane model SQ10S250
Max lifting capacity 10000 kg
Max lifting moment 25 T.m
Max outreach 12.3 m
Max lifting height 14 m
Rated flow of hydraulic system 100 L/min
Oil tank capacity 160 L
Rate pressure of hydraulic system 26 Mpa
Recommend power 30 kw
Install space 1200 mm
Slewing Angle 360°
Crane weight 3955 kg
