Feature

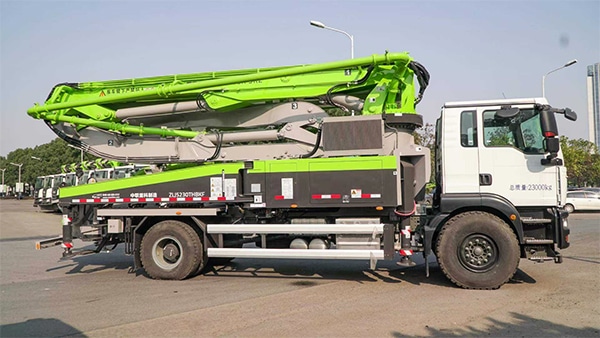

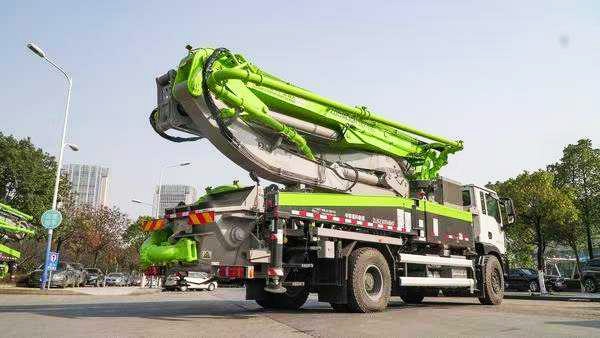

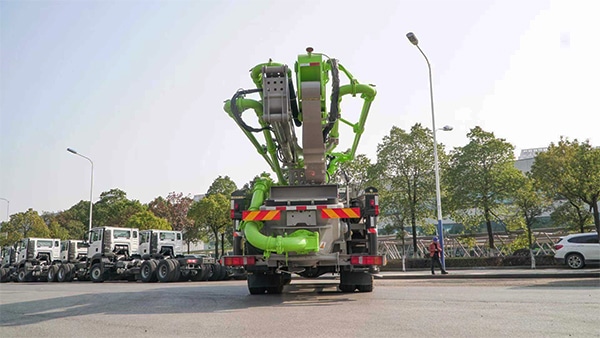

- Compact in design, 36m pump mounted on a 3-axle truck.
- Efficient pump unit, ideal for long time use.
- Agile placing boom with 5 arms with unfolding height 8.52m only, which gives a wide work range.
- One side lateral support enables to work in narrow sites.
- Controller is designed for heavy duty use, with a monitor which monitors the pump intelligently on working data management, real-time diagnostics, alarm logging, and service interval notice.
- Various configurations and high quality components.
- Damping technology boom.
- Boom stabilization control.
- Multilingual man-machine interface system.
- PWM+CAN dual communication mode remote control.
Specification
| Model | Unit | Zoomlion 36X-5Z | |
| Pump Unit | Maximum theorical output | m³/h | 120/80 |
| Maximum pressure on concrete | bar | 70/110 | |
| Conc. cylinders (diam. x stroke) | mm | 130*2100 | |
| Concrete hopper capacity | L | 550 | |
| Hydraulic circuit | Open | ||
| Boom Section | Maximum vertical reach | m | 35.5 |
| Maximum horizontal distance | m | 35.15 | |
| Minimum unfolding height | m | 8.5 | |
| Section numbers | 5 | ||
| Rotating angle | ±270° | ||
| End hose lenght | m | 3 | |
